Raw Edge Plain

Maxbelt Raw Edge Plain V-belts are designed for drives requiring tough, high speed applications with increased horsepower capacity and greater flexibility. Its use is especially suitable in the more demanding automotive power transmission needs. “Suitable for driving fans, alternators and air conditioners”

B. Adhesion Rubber

The adhesion rubber binds the tensile cord, fabric cover and compression rubber to prevent separation of the belt components during use.

C. Tension Cord

The tensile cord is the power transmission element within the belt. Cords are wound around the belt in an uninterrupted spiral for enhanced tensile strength. The cords are twisted in various configurations to match the load application and pre-stretched prior to belt assembly for length stabilization and minimum stretch during use.

A. Cover Fabric

The cover is abrasion resistant, flexible and provides a firm grip onto the sheaves to minimize slippage during use. It is woven from several plies of yarn, rubber treated for maximum adhesion and protects the contents from the elements and static build-up under adverse usage conditions.

D. Compression Rubber

The compression rubber provides support for the load carrying tensile cords while dissipating heat generated from belt use. It is formulated to be resistant to flex cracking and compression fatigue.

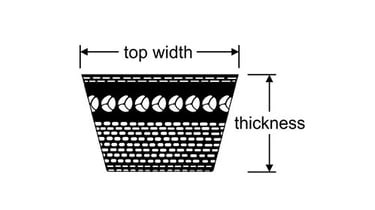

Cross Section

Top Width (mm)

Thickness (mm)

Angle (o)

Length Range (inches)

Minimum Quantity

REP A 12.5 8.0 38 on request 35 pcs

REP Z 10.0 8.0 38 on request 45 pcs
